单片机测电感传感器，又改进了一点

yjmwxwx · 发表于 2018-3-5 16:05:58

本帖最后由 yjmwxwx 于 2018-3-5 16:11 编辑

听各位老师说要加相敏检波，无奈0基础不知道模拟电路怎么加，这个版本用单片机产生5K正弦波，每个周期100点，测第25和75点时候的ADC，肯定会有相移先不考虑，先软件测量正负峰值，再乘这个点的正弦和余弦（这一部程序里还没算）。

现在程序只实现测量线圈两个线的ADC正值，最大4099，在1602下面一行左面右面两个数据，往左拉左边这个数增加，往右推右面数增加，放大倍数可能有点高，手稍微动下就变化很大，滤波数设的有点大数值变化延迟大，东西大部分都在软件里比较好矫正。


如果无法播放，请点击此处在新窗口打开

@ stm32f030f4p6 asm
.thumb
.syntax unified
.section .data
zhengxian1k:
.short 0x30,0x33,0x36,0x38,0x3b,0x3e,0x41,0x44,0x47,0x49,0x4c,0x4e,0x50,0x52,0x54,0x56,0x58,0x59,0x5b,0x5c,0x5d,0x5e,0x5e,0x5f,0x5f,0x5f,0x5f,0x5f,0x5e,0x5d,0x5c,0x5b,0x5a,0x59,0x57,0x55,0x53,0x51,0x4f,0x4d,0x4a,0x48,0x45,0x43,0x40,0x3d,0x3a,0x37,0x34,0x31,0x2e,0x2b,0x28,0x25,0x22,0x1f,0x1c,0x1a,0x17,0x15,0x12,0x10,0xe,0xc,0xa,0x8,0x6,0x5,0x4,0x3,0x2,0x1,0x0,0x0,0x0,0x0,0x0,0x1,0x1,0x2,0x3,0x4,0x6,0x7,0x9,0xb,0xd,0xf,0x11,0x13,0x16,0x18,0x1b,0x1e,0x21,0x24,0x27,0x29,0x2c,0x30
lcdshuju:
.ascii "yjmwxwx-20180304"
dianhua:
.ascii " 15552208295"
qq:
.ascii " QQ:3341656346"
.equ STACKINIT, 0x20001000
.equ asciimabiao, 0x20000000
.equ jishu, 0x20000010
.equ caiyang90zhizhen, 0x20000020
.equ caiyang90, 0x20000024
.equ caiyang270zhizhen, 0x20000120
.equ caiyang270, 0x20000124
.equ adczhengfu, 0x20000104 @1正0负
.section .text
vectors:
.word STACKINIT
.word _start + 1
.word _nmi_handler + 1
.word _hard_fault + 1
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word _svc_handler +1
.word 0
.word 0
.word _pendsv_handler +1
.word _systickzhongduan +1 @ 15
.word aaa +1 @ _wwdg +1 @ 0
.word aaa +1 @_pvd +1 @ 1
.word aaa +1 @_rtc +1 @ 2
.word aaa +1 @_flash +1 @ 3
.word aaa +1 @ _rcc + 1 @ 4
.word aaa +1 @_exti0_1 +1 @ 5
.word aaa +1 @ _exti2_3 +1 @ 6
.word aaa +1 @_exti4_15 +1 @ 7
.word aaa +1 @ 8
.word aaa +1 @_dma1_1 +1 @ 9
.word aaa +1 @_dma1_2_3 +1 @ 10
.word aaa +1 @_dma1_4_5 +1 @ 11
.word aaa +1 @_adc1 +1 @ 12
.word aaa +1 @_tim1_brk_up +1 @ 13
.word aaa +1 @ _tim1_cc +1 @ 14
.word aaa +1 @_tim2 +1 @ 15
.word aaa +1 @_tim3 +1 @ 16
.word aaa +1 @ 17
.word aaa +1 @ 18
.word aaa +1 @_tim14 +1 @ 19
.word aaa +1 @ 20
.word aaa +1 @_tim16 +1 @ 21
.word aaa +1 @_tim17 +1 @ 22
.word aaa +1 @_i2c +1 @ 23
.word aaa +1 @ 24
.word aaa +1 @_spi +1 @ 25
.word aaa +1 @ 26
.word aaa +1 @_usart1 +1 @ 27
.align 2
_start:
shizhong:
ldr r0, = 0x40021000 @ rcc
ldr r2, = 0x40022000 @FLASH访问控制
movs r1, # 0x32
str r1, [r2] @FLASH缓冲缓冲开启
ldr r0, = 0x40021000 @ rcc
ldr r1, = 0x100002
str r1, [r0, # 0x04]
ldr r1, = 0x1000001
str r1, [r0]
dengrc:
ldr r1, [r0]
lsls r1, # 30
bpl dengrc
dengpll:
ldr r1, [r0]
lsls r1, # 6
bpl dengpll
@0x34时钟控制寄存器 2 (RCC_CR2)
movs r1, # 0x01
str r1, [r0, # 0x34] @ HSI开14M时钟
dengdai14mshizhongwending:
ldr r1, [r0, # 0x34]
lsls r1, r1, # 30 @ 左移30位
bpl dengdai14mshizhongwending @ 等待14M时钟稳定
neicunqingling:
ldr r0, = 0x20000000
movs r1, # 0
ldr r3, = 0x1000
neicunqinglingxunhuan:
subs r3, # 4
str r1, [r0, r3]
bne neicunqinglingxunhuan
_waisheshizhong: @ 外设时钟
@+0x14=RCC_AHBENR
@0=DMA @2=SRAM @4=FLITF@6=CRC @17=PA @18=PB @19=PC @20=PD @22=PF
ldr r0, = 0x40021000
ldr r1, = 0x460005
str r1, [r0, # 0x14]
@+0x18外设时钟使能寄存器 (RCC_APB2ENR)
@0=SYSCFG @5=USART6EN @9=ADC @11=TIM1 @12=SPI1 @14=USART1 @16=TIM15 @17=TIM16 @18=TIM17 @22=DBGMCU
ldr r1, = 0xa00
str r1, [r0, # 0x18]
@+0X1C=RCC_APB1ENR
@1=TIM3 @4=TIM6 @5=TIM7 @8=TIM14 @11=WWDG @14=SPI @17=USRT2 @18=USART3 @20=USART5 @21=I2C1
@22=I2C2 @23=USB @28=PWR
tim1chushiha:
ldr r0, = 0x40012c00 @ tim1_cr1
movs r1, # 0
str r1, [r0, # 0x28] @ psc
ldr r1, = 96
str r1, [r0, # 0x2c] @ ARR
ldr r1, = 0x68
str r1, [r0, # 0x1c] @ ccmr2 CC3
ldr r1, = 0x100 @ CC3
str r1, [r0, # 0x20] @ ccer
ldr r1, = 0x8000
str r1, [r0, # 0x44] @ BDTR
ldr r1, = 0x800 @ CC3 DMA
str r1, [r0, # 0x0c] @ DIER
ldr r1, = 0xe1
str r1, [r0]
_adcchushihua:
ldr r0, = 0x40012400 @ adc基地址
ldr r1, = 0x80000000
str r1, [r0, # 0x08] @ ADC 控制寄存器 (ADC_CR) @adc校准
_dengadcjiaozhun:
ldr r1, [r0, # 0x08]
movs r1, r1
bmi _dengadcjiaozhun @ 等ADC校准
_kaiadc:
ldr r1, [r0, # 0x08]
movs r2, # 0x01
orrs r1, r1, r2
str r1, [r0, # 0x08]
_dengdaiadcwending:
ldr r1, [r0]
lsls r1, r1, # 31
bpl _dengdaiadcwending @ 等ADC稳定
_tongdaoxuanze:
ldr r1, = 0x01
str r1, [r0, # 0x28] @ 通道选择寄存器 (ADC_CHSELR)
ldr r1, = 0x2000 @ 13 连续转换
str r1, [r0, # 0x0c] @ 配置寄存器 1 (ADC_CFGR1)
movs r1, # 0x07 @
str r1, [r0, # 0x14] @ ADC 采样时间寄存器 (ADC_SMPR)
ldr r1, [r0, # 0x08]
movs r2, # 0x04 @ 开始转换
orrs r1, r1, r2
str r1, [r0, # 0x08] @ 控制寄存器 (ADC_CR)
dmachushihua:
@+0=LSR,+4=IFCR,
@+8=CCR1,+c=CNDTR1,+10=CPAR1+14=CMAR1,
@+1c=CCR2,+20=CNDTR2,+24=CPAR2,+28=CMAR2
@+30=CCR3,+34=CNDTR3,+38=CPAR2,+3c=CMAR3
@+44=CCR4,+48=CNDTR4,+4c=CPAR4,+50=CMAR4
@+58=CCR5,+5c=CNDTR5,+60=CPAR5,+64=CMAR5
@+6C=CCR6,+70=CNDTR6,+74=CPAR6,+78=CMAR6
@+80=CCR7,+84=CNDTR7,+88=CPAR7,+8c=CMAR7
@tim1ch3DMA
ldr r0, = 0x40020000
ldr r1, = 0x40012c3c @ 外设地址
str r1, [r0, # 0x60]
ldr r1, = zhengxian1k @ 储存器地址
str r1, [r0, # 0x64]
ldr r1, = 100 @点数
str r1, [r0, # 0x5c]
ldr r1, = 0x25b1 @ 储存到外设
str r1, [r0, # 0x58]
_waishezhongduan: @外设中断
@0xE000E100 0-31 写1开，写0没效
@0XE000E180 0-31 写1关，写0没效
@0XE000E200 0-31 挂起，写0没效
@0XE000E280 0-31 清除，写0没效
_systick: @ systick定时器初始化
ldr r0, = 0xe000e010
ldr r1, = 0xffffff
str r1, [r0, # 4]
str r1, [r0, # 8]
movs r1, # 0x07
str r1, [r0]
io_she_zhi:
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@a(0x48000000)b(0x48000400)c(0x48000800)d(0x48000c00)f(0x48001400)
@ 输入（00），通用输出（01），复用功能（10），模拟（11）
@偏移0x4 = 端口输出类型 @ （0 推挽），（ 1 开漏）
@偏移0x8 = 输出速度 00低速， 01中速， 11高速
@偏移0xC = 上拉下拉 (00无上下拉， 01 上拉， 10下拉)
@偏移0x10 = 输入数据寄存器
@偏移0x14 = 输出数据寄存器
@偏移0x18 = 端口开 0-15置位
@偏移0x28 = 端口关
@0X20 = 复用低
@GPIO口0（0-3位）每个IO口占用4位
@ AF0 = 0X0000, AF1 = 0X0001, AF2 = 0X0010 AF3 = 0X0011, AF4 = 0X0100
@ AF5 = 0X0101, AF6 = 0X0111, AF7 = 0X1000
@0x24 = 复用高
@GPIO口8 （0-3位）每个IO口占用4位
@ AF0 = 0X0000, AF1 = 0X0001, AF2 = 0X0010 AF3 = 0X0011, AF4 = 0X0100
@ AF5 = 0X0101, AF6 = 0X0111, AF7 = 0X1000
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
ldr r0, = 0x48000000
ldr r1, = 0x28205553
str r1, [r0]
ldr r1, = 0x200
str r1, [r0, # 0x24]
_lcdchushihua:
movs r0, # 0x33
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x32
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x28
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x0c
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x01
movs r1, # 0
bl _xielcd
bl _lcdyanshi
tingting:
ldr r0, = jishu
ldr r1, [r0]
cmp r1, # 2
beq _lcddi1
cmp r1, # 4
beq _lcddi2
cmp r1, # 6
beq _lcddi3
b _tiaoguolcdxunhuan
_lcddi1:
movs r0, # 0x80
ldr r1, = lcdshuju
movs r2, # 16
movs r3, # 0xff
bl _lcdxianshi
ldr r0, = 0x40020000
ldr r1, = 0
str r1, [r0, # 0x08]
b _tiaoguolcdxunhuan
_lcddi2:
movs r0, # 0x80
ldr r1, = dianhua
movs r2, # 16
movs r3, # 0xff
bl _lcdxianshi
b _tiaoguolcdxunhuan
_lcddi3:
movs r0, # 0x80
ldr r1, = qq
movs r2, # 16
movs r3, # 0xff
bl _lcdxianshi
ldr r0, = jishu
movs r1, # 0
str r1, [r0]
_tiaoguolcdxunhuan:
bl _jianbo
ldr r0, = caiyang90
movs r1, # 32
ldr r2, = caiyang90zhizhen
bl _lvboqi
movs r1, # 6
ldr r2, = asciimabiao
movs r3, # 0xff
bl _zhuanascii
movs r0, # 0xc0
ldr r1, = asciimabiao
movs r2, # 6
bl _lcdxianshi
ldr r0, = caiyang270
movs r1, # 32
ldr r2, = caiyang270zhizhen
bl _lvboqi
movs r1, # 6
ldr r2, = asciimabiao
movs r3, # 0xff
bl _zhuanascii
movs r0, # 0xca
ldr r1, = asciimabiao
movs r2, # 6
bl _lcdxianshi
b tingting
_jisuanfuzhi: @计算幅值
@R0=ADC90度采样
push {r1-r3,lr}
ldr r1, = 0x04 @实 Q15
ldr r2, = 0xffff8004 @虚 Q15
mov r3, r0
muls r0, r0, r3 @实
asrs r0, r0, # 0
muls r3, r3, r4 @虚
asrs r3, r3, # 0
_shibushibushi0: @检测实部是不是负数
movs r0, r0
bpl _fzbushifushu1
mvns r0, r0 @是负数转成正数
adds r0, r0, # 1
_fzbushifushu1: @检测虚部是不是负数
movs r3, r3
bpl _fzbushifushu
mvns r3, r3 @是负数转成正数
adds r3, r3, # 1
_fzbushifushu:
adds r0, r3, r5 @相加得到副值
pop {r1-r3,pc}
_jianbo: @检波
push {r0-r4,lr}
ldr r0, = 0x4002005c
ldr r1, = 0x40012440
cpsid i
_jianbo90du:
ldr r4, [r0]
cmp r4, # 25
bne _jianbo90du
ldr r5, [r1] @取出90度
_jianbo270du:
ldr r4, [r0]
cmp r4, # 75
bne _jianbo270du
ldr r6, [r1]
cpsie i
ldr r4, = 32
ldr r1, = caiyang90zhizhen
ldr r2, = caiyang90
ldr r0, = caiyang270zhizhen
ldr r7, = caiyang270
ldr r3, [r1]
lsls r4, r4, # 2
adds r3, r3, # 4
cmp r3, r4
bne _baocuncaiyang
movs r3, # 0
_baocuncaiyang:
str r5, [r2, r3] @90度
str r6, [r7, r3] @270度
str r3, [r1]
str r3, [r0]
pop {r0-r4,pc}
_lvboqi: @滤波器
@入R0=地址，R1=长度,r2=表指针地址
@出R0=结果
push {r3-r7,lr}
lsls r6, r1, # 2
ldr r5, [r2]
mov r7, r6
_lvboqixunhuan:
cmp r5, r6
bne _lvbozonghe
movs r5, # 0
_lvbozonghe:
ldr r4, [r0, r5]
adds r5, r5, # 4
adds r7, r7, r4
subs r1, r1, # 1
bne _lvboqixunhuan
asrs r0, r7, # 5
pop {r3-r7,pc}
_lcdxianshi: @r0=LCD位置，r1=数据地址，r2=长度
push {r0-r4,lr}
mov r4, r1
movs r1, # 0
bl _xielcd
movs r1, # 1
movs r3, # 0
_lcdxianshixunhuan:
ldrb r0, [r4,r3]
bl _xielcd
adds r3, r3, # 1
cmp r3, r2
bne _lcdxianshixunhuan
pop {r0-r4,pc}
_lcdyanshi:
push {r5,lr}
ldr r5, = 0x2000
_lcdyanshixunhuan:
subs r5, r5, # 1
bne _lcdyanshixunhuan
pop {r5,pc}
_xielcd: @入R0=8位,r1=0命令,r1=1数据
push {r0-r7,lr}
lsrs r6, r0, # 4
lsls r0, r0, # 28
lsrs r0, r0, # 28
movs r2, # 0x80 @ RS
movs r3, # 0x40 @ E
movs r5, # 0x3c
ldr r4, = 0x48000000
cmp r1, # 0
beq _lcdmingling
str r2, [r4, # 0x18] @RS=1
b _lcdshuju
_lcdmingling:
str r2, [r4, # 0x28] @RS=0
_lcdshuju:
str r3, [r4, # 0x18] @E=1
str r5, [r4, # 0x28]
lsls r7, r6, # 31
lsrs r7, r7, # 26
str r7, [r4, # 0x18]
lsrs r7, r6, # 1
lsls r7, r7, # 31
lsrs r7, r7, # 27
str r7, [r4, # 0x18]
lsrs r7, r6, # 2
lsls r7, r7, # 31
lsrs r7, r7, # 28
str r7, [r4, # 0x18]
lsrs r7, r6, # 3
lsls r7, r7, # 31
lsrs r7, r7, # 29
str r7, [r4, # 0x18]
bl _lcdyanshi
str r3, [r4, # 0x28] @E=0
str r3, [r4, # 0x18] @E=1
str r5, [r4, # 0x28]
lsls r7, r0, # 31
lsrs r7, r7, # 26
str r7, [r4, # 0x18]
lsrs r7, r0, # 1
lsls r7, r7, # 31
lsrs r7, r7, # 27
str r7, [r4, # 0x18]
lsrs r7, r0, # 2
lsls r7, r7, # 31
lsrs r7, r7, # 28
str r7, [r4, # 0x18]
lsrs r7, r0, # 3
lsls r7, r7, # 31
lsrs r7, r7, # 29
str r7, [r4, # 0x18]
bl _lcdyanshi
str r3, [r4, # 0x28] @E=0
pop {r0-r7,pc}
.ltorg
_zhuanascii: @ 16进制转数码管码
@ R0要转的数据， R1长度，R2结果表首地址, r3=小数点位置
push {r0-r7,lr}
mov r7, r3
mov r5, r0
mov r6, r1
movs r1, # 10
_xunhuanqiuma:
bl _chufa
mov r4, r0
muls r4, r1
subs r3, r5, r4
adds r3, r3, # 0x30
mov r5, r0
subs r6, r6, # 1
beq _qiumafanhui
cmp r6, r7
bne _meidaoxiaoshudian
movs r4, # 0x2e @小数点
strb r4, [r2,r6] @插入小数点
subs r6, r6, # 1
_meidaoxiaoshudian:
strb r3, [r2,r6]
movs r6, r6
bne _xunhuanqiuma
pop {r0-r7,pc}
_qiumafanhui:
strb r3, [r2, r6]
pop {r0-r7,pc}
_chufa: @软件除法
@ r0 除以 r1 等于商(r0)余数R1
push {r1-r4,lr}
cmp r0, # 0
beq _chufafanhui
cmp r1, # 0
beq _chufafanhui
mov r2, r0
movs r3, # 1
lsls r3, r3, # 31
movs r0, # 0
mov r4, r0
_chufaxunhuan:
lsls r2, r2, # 1
adcs r4, r4, r4
cmp r4, r1
bcc _chufaweishubudao0
adds r0, r0, r3
subs r4, r4, r1
_chufaweishubudao0:
lsrs r3, r3, # 1
bne _chufaxunhuan
_chufafanhui:
pop {r1-r4,pc}
.ltorg
_nmi_handler:
bx lr
_hard_fault:
bx lr
_svc_handler:
bx lr
_pendsv_handler:
bx lr
_systickzhongduan:
ldr r2, = jishu
ldr r0, = 0xe0000d04
ldr r3, [r2]
ldr r1, = 0x02000000
adds r3, r3, # 1
str r3, [r2]
str r1, [r0] @ 清除SYSTICK中断
aaa:
bx lr

复制代码

程序：

lvdt11.tar.gz (68.85 KB, 下载次数: 61)

lrzxc · 发表于 2018-3-5 16:29:08

又见汇编高手啦

SKY-X · 发表于 2018-3-5 17:05:13

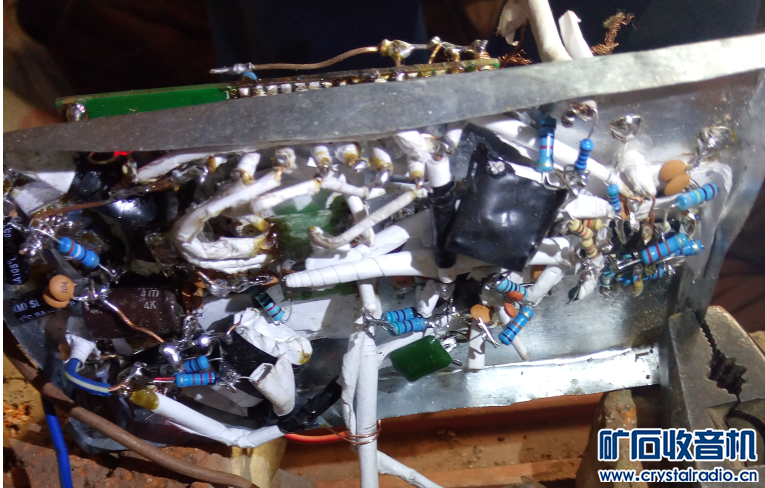

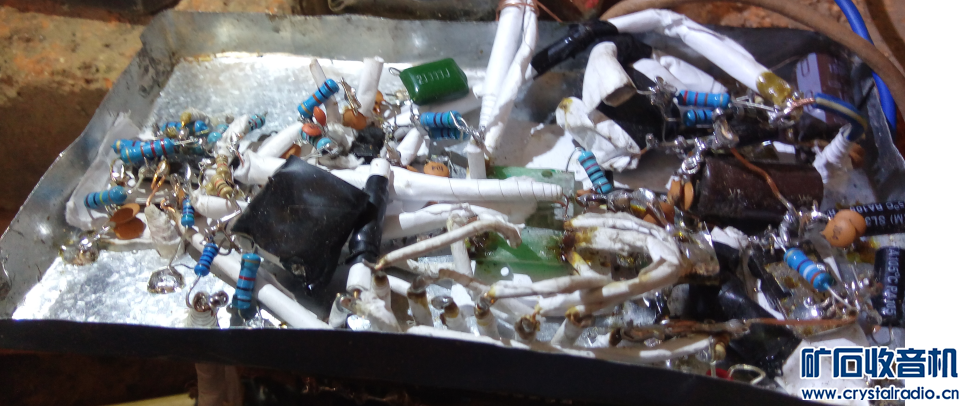

大写的卧槽，这电路真是叹为观止

兰贵烦 · 发表于 2018-3-5 17:05:34

汇编用得好的都是高手，搭棚也搭得强大

yuren008 · 发表于 2018-3-5 19:54:08

不由得不从心里服气。

gxg0000 · 发表于 2018-3-5 20:22:56

传感器制造的最大的难点就是解决漂移和非线性，相敏整流能够改善输出的非线性，电路中尽可能不要使用直流放大器，而采用交流放大。

yjmwxwx · 发表于 2018-3-6 02:24:04

谢谢各位老师鼓励，我模电、数电、数学、物理都不懂，只会编点入门的小程序。
要是有最丑电路奖我肯定能得奖。
今天又改进了下程序，ADC采样到90和270度数据后分别计算出幅值，再判断相位和平均滤波器平滑，1602下面的左边是幅值右面是相位。这程序很简单，和显示数码管的程序差不多，就是要准估计不好弄。

@ stm32f030f4p6 asm
.thumb
.syntax unified
.section .data
zhengxian1k:
.short 0x30,0x33,0x36,0x38,0x3b,0x3e,0x41,0x44,0x47,0x49,0x4c,0x4e,0x50,0x52,0x54,0x56,0x58,0x59,0x5b,0x5c,0x5d,0x5e,0x5e,0x5f,0x5f,0x5f,0x5f,0x5f,0x5e,0x5d,0x5c,0x5b,0x5a,0x59,0x57,0x55,0x53,0x51,0x4f,0x4d,0x4a,0x48,0x45,0x43,0x40,0x3d,0x3a,0x37,0x34,0x31,0x2e,0x2b,0x28,0x25,0x22,0x1f,0x1c,0x1a,0x17,0x15,0x12,0x10,0xe,0xc,0xa,0x8,0x6,0x5,0x4,0x3,0x2,0x1,0x0,0x0,0x0,0x0,0x0,0x1,0x1,0x2,0x3,0x4,0x6,0x7,0x9,0xb,0xd,0xf,0x11,0x13,0x16,0x18,0x1b,0x1e,0x21,0x24,0x27,0x29,0x2c,0x30
lcdshuju:
.ascii "yjmwxwx-20180306"
dianhua:
.ascii " 15552208295"
qq:
.ascii " QQ:3341656346"
.equ STACKINIT, 0x20001000
.equ asciimabiao, 0x20000000
.equ jishu, 0x20000010
.equ lvbozhizhen, 0x20000020
.equ lvbohuanchong, 0x20000024
.section .text
vectors:
.word STACKINIT
.word _start + 1
.word _nmi_handler + 1
.word _hard_fault + 1
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word 0
.word _svc_handler +1
.word 0
.word 0
.word _pendsv_handler +1
.word _systickzhongduan +1 @ 15
.word aaa +1 @ _wwdg +1 @ 0
.word aaa +1 @_pvd +1 @ 1
.word aaa +1 @_rtc +1 @ 2
.word aaa +1 @_flash +1 @ 3
.word aaa +1 @ _rcc + 1 @ 4
.word aaa +1 @_exti0_1 +1 @ 5
.word aaa +1 @ _exti2_3 +1 @ 6
.word aaa +1 @_exti4_15 +1 @ 7
.word aaa +1 @ 8
.word aaa +1 @_dma1_1 +1 @ 9
.word aaa +1 @_dma1_2_3 +1 @ 10
.word aaa +1 @_dma1_4_5 +1 @ 11
.word aaa +1 @_adc1 +1 @ 12
.word aaa +1 @_tim1_brk_up +1 @ 13
.word aaa +1 @ _tim1_cc +1 @ 14
.word aaa +1 @_tim2 +1 @ 15
.word aaa +1 @_tim3 +1 @ 16
.word aaa +1 @ 17
.word aaa +1 @ 18
.word aaa +1 @_tim14 +1 @ 19
.word aaa +1 @ 20
.word aaa +1 @_tim16 +1 @ 21
.word aaa +1 @_tim17 +1 @ 22
.word aaa +1 @_i2c +1 @ 23
.word aaa +1 @ 24
.word aaa +1 @_spi +1 @ 25
.word aaa +1 @ 26
.word aaa +1 @_usart1 +1 @ 27
.align 2
_start:
shizhong:
ldr r0, = 0x40021000 @ rcc
ldr r2, = 0x40022000 @FLASH访问控制
movs r1, # 0x32
str r1, [r2] @FLASH缓冲缓冲开启
ldr r0, = 0x40021000 @ rcc
ldr r1, = 0x100002
str r1, [r0, # 0x04]
ldr r1, = 0x1000001
str r1, [r0]
dengrc:
ldr r1, [r0]
lsls r1, # 30
bpl dengrc
dengpll:
ldr r1, [r0]
lsls r1, # 6
bpl dengpll
@0x34时钟控制寄存器 2 (RCC_CR2)
movs r1, # 0x01
str r1, [r0, # 0x34] @ HSI开14M时钟
dengdai14mshizhongwending:
ldr r1, [r0, # 0x34]
lsls r1, r1, # 30 @ 左移30位
bpl dengdai14mshizhongwending @ 等待14M时钟稳定
neicunqingling:
ldr r0, = 0x20000000
movs r1, # 0
ldr r3, = 0x1000
neicunqinglingxunhuan:
subs r3, # 4
str r1, [r0, r3]
bne neicunqinglingxunhuan
_waisheshizhong: @ 外设时钟
@+0x14=RCC_AHBENR
@0=DMA @2=SRAM @4=FLITF@6=CRC @17=PA @18=PB @19=PC @20=PD @22=PF
ldr r0, = 0x40021000
ldr r1, = 0x460005
str r1, [r0, # 0x14]
@+0x18外设时钟使能寄存器 (RCC_APB2ENR)
@0=SYSCFG @5=USART6EN @9=ADC @11=TIM1 @12=SPI1 @14=USART1 @16=TIM15 @17=TIM16 @18=TIM17 @22=DBGMCU
ldr r1, = 0xa00
str r1, [r0, # 0x18]
@+0X1C=RCC_APB1ENR
@1=TIM3 @4=TIM6 @5=TIM7 @8=TIM14 @11=WWDG @14=SPI @17=USRT2 @18=USART3 @20=USART5 @21=I2C1
@22=I2C2 @23=USB @28=PWR
tim1chushiha:
ldr r0, = 0x40012c00 @ tim1_cr1
movs r1, # 0
str r1, [r0, # 0x28] @ psc
ldr r1, = 96
str r1, [r0, # 0x2c] @ ARR
ldr r1, = 0x68
str r1, [r0, # 0x1c] @ ccmr2 CC3
ldr r1, = 0x100 @ CC3
str r1, [r0, # 0x20] @ ccer
ldr r1, = 0x8000
str r1, [r0, # 0x44] @ BDTR
ldr r1, = 0x800 @ CC3 DMA
str r1, [r0, # 0x0c] @ DIER
ldr r1, = 0xe1
str r1, [r0]
_adcchushihua:
ldr r0, = 0x40012400 @ adc基地址
ldr r1, = 0x80000000
str r1, [r0, # 0x08] @ ADC 控制寄存器 (ADC_CR) @adc校准
_dengadcjiaozhun:
ldr r1, [r0, # 0x08]
movs r1, r1
bmi _dengadcjiaozhun @ 等ADC校准
_kaiadc:
ldr r1, [r0, # 0x08]
movs r2, # 0x01
orrs r1, r1, r2
str r1, [r0, # 0x08]
_dengdaiadcwending:
ldr r1, [r0]
lsls r1, r1, # 31
bpl _dengdaiadcwending @ 等ADC稳定
_tongdaoxuanze:
ldr r1, = 0x01
str r1, [r0, # 0x28] @ 通道选择寄存器 (ADC_CHSELR)
ldr r1, = 0x2000 @ 13 连续转换
str r1, [r0, # 0x0c] @ 配置寄存器 1 (ADC_CFGR1)
movs r1, # 0x07 @
str r1, [r0, # 0x14] @ ADC 采样时间寄存器 (ADC_SMPR)
ldr r1, [r0, # 0x08]
movs r2, # 0x04 @ 开始转换
orrs r1, r1, r2
str r1, [r0, # 0x08] @ 控制寄存器 (ADC_CR)
dmachushihua:
@+0=LSR,+4=IFCR,
@+8=CCR1,+c=CNDTR1,+10=CPAR1+14=CMAR1,
@+1c=CCR2,+20=CNDTR2,+24=CPAR2,+28=CMAR2
@+30=CCR3,+34=CNDTR3,+38=CPAR2,+3c=CMAR3
@+44=CCR4,+48=CNDTR4,+4c=CPAR4,+50=CMAR4
@+58=CCR5,+5c=CNDTR5,+60=CPAR5,+64=CMAR5
@+6C=CCR6,+70=CNDTR6,+74=CPAR6,+78=CMAR6
@+80=CCR7,+84=CNDTR7,+88=CPAR7,+8c=CMAR7
@tim1ch3DMA
ldr r0, = 0x40020000
ldr r1, = 0x40012c3c @ 外设地址
str r1, [r0, # 0x60]
ldr r1, = zhengxian1k @ 储存器地址
str r1, [r0, # 0x64]
ldr r1, = 100 @点数
str r1, [r0, # 0x5c]
ldr r1, = 0x25b1 @ 储存到外设
str r1, [r0, # 0x58]
_waishezhongduan: @外设中断
@0xE000E100 0-31 写1开，写0没效
@0XE000E180 0-31 写1关，写0没效
@0XE000E200 0-31 挂起，写0没效
@0XE000E280 0-31 清除，写0没效
_systick: @ systick定时器初始化
ldr r0, = 0xe000e010
ldr r1, = 0xffffff
str r1, [r0, # 4]
str r1, [r0, # 8]
movs r1, # 0x07
str r1, [r0]
io_she_zhi:
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
@a(0x48000000)b(0x48000400)c(0x48000800)d(0x48000c00)f(0x48001400)
@ 输入（00），通用输出（01），复用功能（10），模拟（11）
@偏移0x4 = 端口输出类型 @ （0 推挽），（ 1 开漏）
@偏移0x8 = 输出速度 00低速， 01中速， 11高速
@偏移0xC = 上拉下拉 (00无上下拉， 01 上拉， 10下拉)
@偏移0x10 = 输入数据寄存器
@偏移0x14 = 输出数据寄存器
@偏移0x18 = 端口开 0-15置位
@偏移0x28 = 端口关
@0X20 = 复用低
@GPIO口0（0-3位）每个IO口占用4位
@ AF0 = 0X0000, AF1 = 0X0001, AF2 = 0X0010 AF3 = 0X0011, AF4 = 0X0100
@ AF5 = 0X0101, AF6 = 0X0111, AF7 = 0X1000
@0x24 = 复用高
@GPIO口8 （0-3位）每个IO口占用4位
@ AF0 = 0X0000, AF1 = 0X0001, AF2 = 0X0010 AF3 = 0X0011, AF4 = 0X0100
@ AF5 = 0X0101, AF6 = 0X0111, AF7 = 0X1000
@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@@
ldr r0, = 0x48000000
ldr r1, = 0x28205553
str r1, [r0]
ldr r1, = 0x200
str r1, [r0, # 0x24]
_lcdchushihua:
movs r0, # 0x33
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x32
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x28
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x0c
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r0, # 0x01
movs r1, # 0
bl _xielcd
bl _lcdyanshi
movs r6, # 64
_denglvboqihuanchongman: @等滤波器缓冲区满
bl _lvdtfuzhi
subs r6, r6, # 1
bne _denglvboqihuanchongman
tingting:
ldr r0, = jishu
ldr r1, [r0]
cmp r1, # 2
beq _lcddi1
cmp r1, # 4
beq _lcddi2
cmp r1, # 6
beq _lcddi3
b _tiaoguolcdxunhuan
_lcddi1:
movs r0, # 0x80
ldr r1, = lcdshuju
movs r2, # 16
movs r3, # 0xff
bl _lcdxianshi
ldr r0, = 0x40020000
ldr r1, = 0
str r1, [r0, # 0x08]
b _tiaoguolcdxunhuan
_lcddi2:
movs r0, # 0x80
ldr r1, = dianhua
movs r2, # 16
movs r3, # 0xff
bl _lcdxianshi
b _tiaoguolcdxunhuan
_lcddi3:
movs r0, # 0x80
ldr r1, = qq
movs r2, # 16
movs r3, # 0xff
bl _lcdxianshi
ldr r0, = jishu
movs r1, # 0
str r1, [r0]
_tiaoguolcdxunhuan:
bl _lvdtfuzhi @计算LVDT传感器幅值
mov r4, r1
movs r1, # 6
ldr r2, = asciimabiao
movs r3, # 0xff
bl _zhuanascii
movs r0, # 0xc0
ldr r1, = asciimabiao
movs r2, # 6
bl _lcdxianshi
mov r0, r4
bl _jisuanfuzhi
movs r1, # 6
ldr r2, = asciimabiao
movs r3, # 0xff
bl _zhuanascii
movs r0, # 0xca
ldr r1, = asciimabiao
movs r2, # 6
bl _lcdxianshi
b tingting
_lvdtfuzhi: @出R0=幅值，R1=相位
push {r2-r7,lr}
bl _jianbo @检波90、270
bl _jisuanfuzhi @计算90幅度
mov r2, r0
mov r0, r1
bl _jisuanfuzhi @计算270幅度
mov r1, r0
mov r0, r2
bl _xiangweipanduan @判断相位
mov r4, r1
mov r3, r0
ldr r0, = lvbohuanchong @滤波器缓冲区
movs r1, # 64 @级数
ldr r2, = lvbozhizhen @滤波器指针
bl _lvboqi @平滑，平均滤波器
mov r1, r4
pop {r2-r7,pc}
_xiangweipanduan: @相位判断
@入R0=90度，R1=270度
@出R0=相之间相差的数值，
@出R1=1,90度是正，R1=0，90度是负
push {r2}
subs r2, r0, r1
bpl _adc90shizheng
subs r2, r1, r0
bpl _adc90shifu
cmp r0, r1
bne _xiangweipanduanfanhui
_adc90shizheng:
mov r0, r2
movs r1, # 1
pop {r2}
bx lr
_adc90shifu:
mov r0, r2
movs r1, # 0
pop {r2}
bx lr
_xiangweipanduanfanhui:
movs r0, # 0
movs r1, # 1
pop {r2}
bx lr
_jisuanfuzhi: @计算幅值
@入R0出R0
@R0=ADC90度采样
push {r1-r3,lr}
cmp r0, # 0
beq _adcshi0fanhui
ldr r1, = 0x04 @实 Q15
ldr r2, = 0xffff8004 @虚 Q15
mov r3, r0
muls r0, r0, r1 @实
asrs r0, r0, # 15
muls r3, r3, r2 @虚
asrs r3, r3, # 15
_shibushibushi0: @检测实部是不是负数
movs r0, r0
bpl _fzbushifushu1
mvns r0, r0 @是负数转成正数
adds r0, r0, # 1
_fzbushifushu1: @检测虚部是不是负数
movs r3, r3
bpl _fzbushifushu
mvns r3, r3 @是负数转成正数
adds r3, r3, # 1
_fzbushifushu:
adds r0, r0, r3 @相加得到副值
_adcshi0fanhui:
pop {r1-r3,pc}
_jianbo: @检波
@输出r0=90度，R1=270度
push {r2-r4,lr}
ldr r2, = 0x4002005c
ldr r3, = 0x40012440
cpsid i
_jianbo90du:
ldr r4, [r2]
cmp r4, # 25
bne _jianbo90du
ldr r0, [r3] @取出90度
_jianbo270du:
ldr r4, [r2]
cmp r4, # 75
bne _jianbo270du
ldr r1, [r3]
cpsie i
pop {r2-r4,pc}
_lvboqi: @滤波器
@R0=地址，R1=长度,r2=表指针地址,r3=ADC数值
@出R0=结果
push {r1-r7,lr}
ldr r5, [r2] @读出表指针
lsls r6, r1, # 2
str r3, [r0, r5] @数值写到滤波器缓冲区
adds r5, r5, # 4
cmp r5, r6
bne _lvboqimeidaohuanchongquding
movs r5, # 0
_lvboqimeidaohuanchongquding:
str r5, [r2]
movs r7, # 0
_lvboqixunhuan:
cmp r5, r6
bne _lvbozonghe
movs r5, # 0
_lvbozonghe:
ldr r4, [r0, r5]
adds r5, r5, # 4
adds r7, r7, r4
subs r1, r1, # 1
bne _lvboqixunhuan
asrs r0, r7, # 6
pop {r1-r7,pc}
_lcdxianshi: @r0=LCD位置，r1=数据地址，r2=长度
push {r0-r4,lr}
mov r4, r1
movs r1, # 0
bl _xielcd
movs r1, # 1
movs r3, # 0
_lcdxianshixunhuan:
ldrb r0, [r4,r3]
bl _xielcd
adds r3, r3, # 1
cmp r3, r2
bne _lcdxianshixunhuan
pop {r0-r4,pc}
_lcdyanshi:
push {r5,lr}
ldr r5, = 0x2000
_lcdyanshixunhuan:
subs r5, r5, # 1
bne _lcdyanshixunhuan
pop {r5,pc}
_xielcd: @入R0=8位,r1=0命令,r1=1数据
push {r0-r7,lr}
lsrs r6, r0, # 4
lsls r0, r0, # 28
lsrs r0, r0, # 28
movs r2, # 0x80 @ RS
movs r3, # 0x40 @ E
movs r5, # 0x3c
ldr r4, = 0x48000000
cmp r1, # 0
beq _lcdmingling
str r2, [r4, # 0x18] @RS=1
b _lcdshuju
_lcdmingling:
str r2, [r4, # 0x28] @RS=0
_lcdshuju:
str r3, [r4, # 0x18] @E=1
str r5, [r4, # 0x28]
lsls r7, r6, # 31
lsrs r7, r7, # 26
str r7, [r4, # 0x18]
lsrs r7, r6, # 1
lsls r7, r7, # 31
lsrs r7, r7, # 27
str r7, [r4, # 0x18]
lsrs r7, r6, # 2
lsls r7, r7, # 31
lsrs r7, r7, # 28
str r7, [r4, # 0x18]
lsrs r7, r6, # 3
lsls r7, r7, # 31
lsrs r7, r7, # 29
str r7, [r4, # 0x18]
bl _lcdyanshi
str r3, [r4, # 0x28] @E=0
str r3, [r4, # 0x18] @E=1
str r5, [r4, # 0x28]
lsls r7, r0, # 31
lsrs r7, r7, # 26
str r7, [r4, # 0x18]
lsrs r7, r0, # 1
lsls r7, r7, # 31
lsrs r7, r7, # 27
str r7, [r4, # 0x18]
lsrs r7, r0, # 2
lsls r7, r7, # 31
lsrs r7, r7, # 28
str r7, [r4, # 0x18]
lsrs r7, r0, # 3
lsls r7, r7, # 31
lsrs r7, r7, # 29
str r7, [r4, # 0x18]
bl _lcdyanshi
str r3, [r4, # 0x28] @E=0
pop {r0-r7,pc}
.ltorg
_zhuanascii: @ 16进制转数码管码
@ R0要转的数据， R1长度，R2结果表首地址, r3=小数点位置
push {r0-r7,lr}
mov r7, r3
mov r5, r0
mov r6, r1
movs r1, # 10
_xunhuanqiuma:
bl _chufa
mov r4, r0
muls r4, r1
subs r3, r5, r4
adds r3, r3, # 0x30
mov r5, r0
subs r6, r6, # 1
beq _qiumafanhui
cmp r6, r7
bne _meidaoxiaoshudian
movs r4, # 0x2e @小数点
strb r4, [r2,r6] @插入小数点
subs r6, r6, # 1
_meidaoxiaoshudian:
strb r3, [r2,r6]
movs r6, r6
bne _xunhuanqiuma
pop {r0-r7,pc}
_qiumafanhui:
strb r3, [r2, r6]
pop {r0-r7,pc}
_chufa: @软件除法
@ r0 除以 r1 等于商(r0)余数R1
push {r1-r4,lr}
cmp r0, # 0
beq _chufafanhui
cmp r1, # 0
beq _chufafanhui
mov r2, r0
movs r3, # 1
lsls r3, r3, # 31
movs r0, # 0
mov r4, r0
_chufaxunhuan:
lsls r2, r2, # 1
adcs r4, r4, r4
cmp r4, r1
bcc _chufaweishubudao0
adds r0, r0, r3
subs r4, r4, r1
_chufaweishubudao0:
lsrs r3, r3, # 1
bne _chufaxunhuan
_chufafanhui:
pop {r1-r4,pc}
.ltorg
_nmi_handler:
bx lr
_hard_fault:
bx lr
_svc_handler:
bx lr
_pendsv_handler:
bx lr
_systickzhongduan:
ldr r2, = jishu
ldr r0, = 0xe0000d04
ldr r3, [r2]
ldr r1, = 0x02000000
adds r3, r3, # 1
str r3, [r2]
str r1, [r0] @ 清除SYSTICK中断
aaa:
bx lr

复制代码

yjmwxwx · 发表于 2018-3-6 08:45:10

视频：
来回推拉筷子屏幕第二行左边显示幅值右边显示相位

如果无法播放，请点击此处在新窗口打开

mcu5i51 · 发表于 2018-3-8 13:54:55

我看的第一本相差的书<精密测量>中就有这个差动变压器,好像当时就是古董,大约5-6十年之前的书籍了,电路应该不复杂;

zaq · 发表于 2018-3-8 15:09:44

大神，汇编玩到这样，对mcu硬件了解也算是门清了。

cumt_123456 · 发表于 2018-3-22 21:17:08

这真是吓人，哈哈

zhxzhx · 发表于 2018-3-23 05:10:35

卧槽，Stm32你也拿汇编写，一点没发挥出St给你准备的库的优势啊。

zzs09 · 发表于 2018-3-26 09:20:06

您是大侠啊，汇编不懂，搭桥也看不懂

		自动登录	找回密码
密码			加入会员

单片机测电感传感器，又改进了一点

浏览过的版块
